Let’s Build a Thing! (Part Three)

Welcome back! As I seem to have found my writing cadence I thought I’d keep on ploughin’ on with this series of build-a-thing posts. You can find the previous posts here and here. To re-cap, I’ve:

  • Configured my local dev environment for TypeScript.

  • Devved a really simple implementation of the Observer Pattern

With these bits and bobs in place I’ve got a really simple way of notifying components when anything changes in my state. The really interesting bit comes next. I now want to build a concrete Observer implementation which is able to traverse and update the DOM when the state is modified. LET US WRITE A TEST.

In this gist I’ve got a teeny-tiny class called Toy. Its responsibility now is simply to register itself as an observer with whatever controller it is “newed up” with. Nice - we’re now able to subscribe to changes in the state of our Controller, and can use it to update the Document Object Model! So what kind of functionality do we want to add to this new class? Initially I’d like to support the rendering out of double moustaches in a given document with whatever contents are represented in the state of my Controller. EG:

<div>{{ test }}</div>

Becomes:

<div>Hello, World!</div>

Why doubly-moustachiod? Because there may be legitimate reasons why consumers of my lovely library want to wrap pieces of text in single moustaches. Let’s not cause them a headache! So it looks like there’s another simple piece of functionality here that we can drive out in a couple of other tests! Let’s do that thing:

I’ve updated my constructor to accept an additional parameter - The HTMLElement to render. The update implementation of my Toy class now uses this “Root” element to find and replace any double-taches with the correctly-rendered content (as defined in the state of the Controller class). I’ve also updated the Controller’s registerObserver function such that it automatically updates any newly-registered Observers. This means that all Observers get an up-to-date copy of the Controller’s state when they are registered.

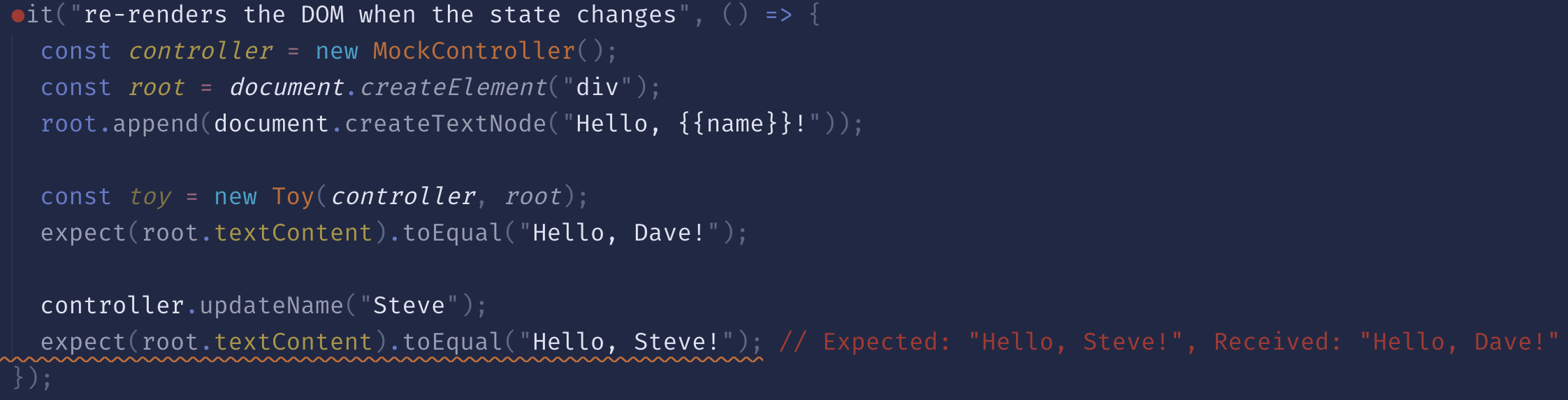

But what happens on a subsequent re-render? Let’s write another test and see!

So this is failing for a pretty good reason - As soon as I’ve un-moustached the DOM I’ve lost the context of where the original moustaches were. Any subsequent un-moustachification is going to fail because the moustaches are no longer there :pensive: - Let’s fix this!

The latest version of the Toy class simply creates a deep clone of the original HTMLElement, and uses that to find whatever moustaches are needed to be ELIMINATED from the DOM. This is an extremely naïve implementation of dynamic DOM rendering, but is working well for this latest test case. Just one thing, though - We’ve not actually “wired” this code up to an actual HTML page, yet. It is all conjecture, whimsy and caprice. Let’s see about getting this sorted, as the old adage goes:

Integrate Early and Often

All I want to do here is serve a simple Index page, and have it construct an instance of Toy, using a script tag. This, too we can drive out with tests! The below gist shows the overall approach, and involves a couple of new npm dependencies, namely supertest and express.

There are quite a few amendments to support this in the above Gist, so let’s take them all individually.

app.js

This code file sets up an extremely simple web app using express. It serves everything under the dist path as static assets, and serves the file index.html on the default route.

server.js

Here we just bootstrap the Express server and serve the above app on port 5678

index.html

This is a simple skeletal html file with a single script reference which points to the transpiled toy.js which is produced by Webpack, using the ts-loader. Notice how the script is the last thing in the page? That’s pretty important…

package.json

Here I’m just pointing out the brand new, swanky serve task which is going to both transpile all of the tasty TypeScript into a single, transpiled artifact.

server.test.js

Here we just establish that Express is functioning correctly. That we are serving a vanilla HTML page with a successful HTTP status code. We can continue to flesh this test out shortly, but for now this is the minimum amount of stuff I want to assert on, quite frankly!

index.ts

This is the entry point for the application! It includes 3 exports. Toy, Controller and MockController. We’re going to use MockController to bootstrap this trivial example, but we’ll make sure to exclude it from the app going forwards!

webpack.config.js

This is dead important!! As the context of toy-js is to be run in the browser, it’s extremely important that the library option here is configured. This has the effect of namespacing the transpiled JavaScript so that it is available in the browser. This, coupled with the fact that all of the TypeScript classes need to have a named export is the key to making the library available from a web browser. This took me longer than I care to admit to figure out…

Et voila! I know there’s been a bazillion things that I’ve explored in this post, but it largely boils down to a few main things. I’ve created a simple Toy class which is able to parse and manipulate the DOM. We’ve then given a little effort to creating a dead simple test harness. We’ve learned a little more about our Webpack configuration, and specified a new default export file which is used to export all the types we might need in the final, transpiled distribution.

My respect for the engineers behind React, Vue and other frameworks is growing exponentially! Next time I’ll look at extending the tests here to include some performance feedback. How long does this thing take to render a simple parent div? What about child components?

IT’S ALL TO PLAY FOR, BARRY!
